Consealed drop down seal GF-B08

Consealed drop down seal GF-B08

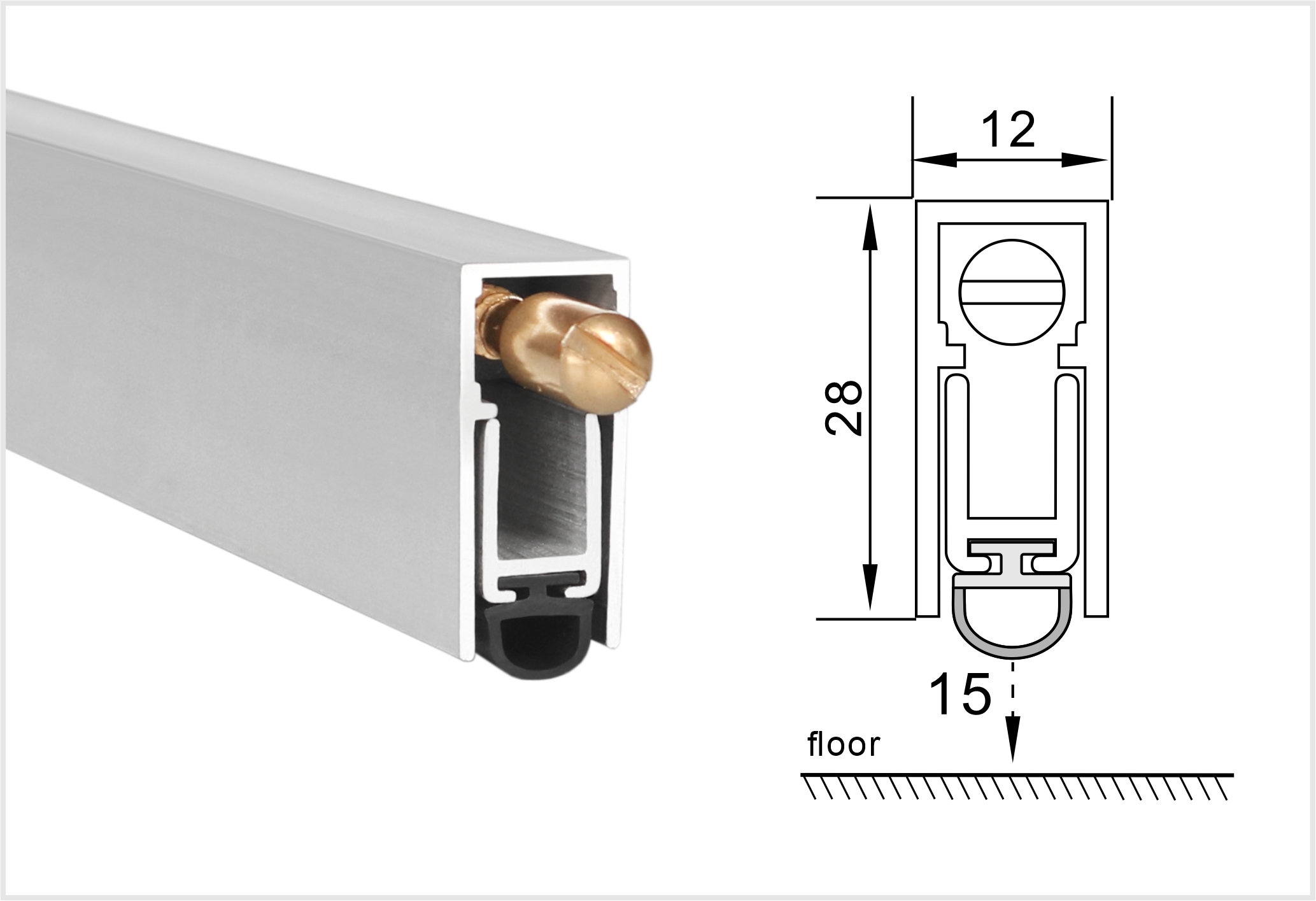

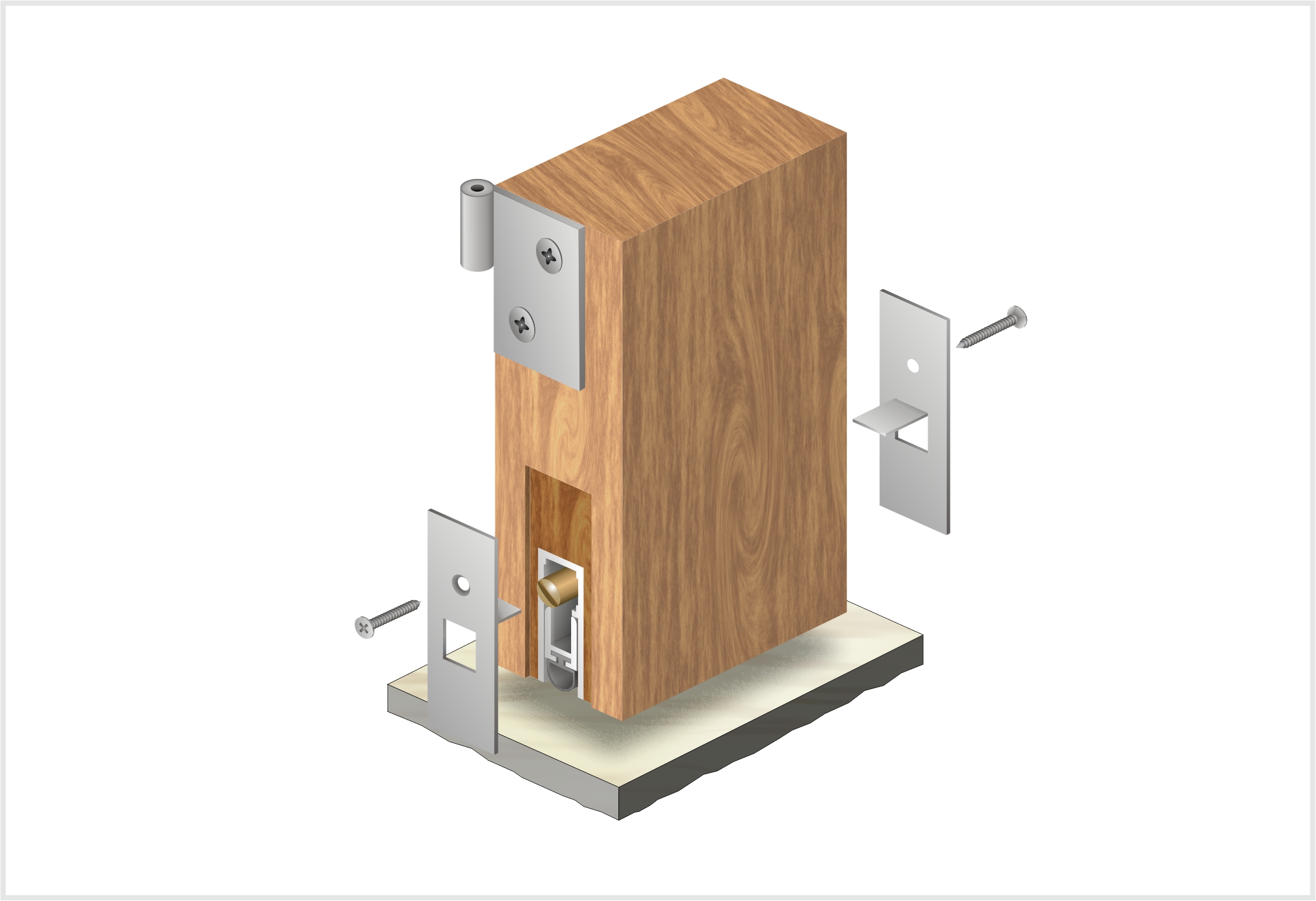

Consealed drop down seal, four-bar linkage mechanism, suitable for doors with slots in the door leaf. During installation, a 28mm*12mm through slot is required at the bottom of the door, and the product is placed in it, and the cover plates and seals at both ends are fixed with screws (or from the bottom of the sealing strip with screws). The use of this product does not affect the overall door style.


Product Detail

Product Tags

Product Description

GF-B08
Consealed drop down seal, four-bar linkage mechanism, suitable for doors with slots in the door leaf. During installation, a 28mm*12mm through slot is required at the bottom of the door, and the product is placed in it, and the cover plates and seals at both ends are fixed with screws (or from the bottom of the sealing strip with screws). The use of this product does not affect the overall door style.
Product Advantage
Unique design, light and beautiful, compact and stable structure.
Soft and hard co-extrusion adhesive strip is easy to install and not easy to fall off.
The cooper plunger can be automatically locked after adjustment, not easy to loose, durable and stable sealing effect.
Internal case can draw out as a whole, convenient to install and maintenance.
Optional for brackets installation or top installation.
The top installation is convenient and diversified, extract the whole lifting mechanism to install, or only extract sealing strip to install.
Internal four-bar linkage mechanism, flexible movement, stable structure, stronger anti-wind pressure.
Specifications
Length 330mm-1500mm
Sealing Gap 3mm – 15mm
Finish Untreated aluminum
Fixing With pre-mounted screws under the seal, endcap optional. With stainless steel bracket, cover is optional.
Plunger Optional Copper button, nylon button, universal button
Seal Co-extruded PVC seal, black colour
B08-+-
B08--.

Packaging method

Packaging method

FAQ

Q1: Where can the door seal be used?
A1: The drop down door seal is suitable for residential, commercial, and industrial doors.

Q2: When should I consider replacing the door seal?
A2: With a tested operational life of up to 100,000 cycles, replacement is only necessary when the seal shows signs of wear or damage, or when its effectiveness diminishes over time.

Q3: How does using this seal benefit my property or business?
A3: By installing the door seal, you can reduce drafts, noise, and dust infiltration, improving energy efficiency and comfort within your space while minimizing maintenance needs.

Q4. Are you a manufacturer or trading company?
A4:We are a professional door and windows seal manufacturer with more than 23 years 'experience for domestic and International market.

Q5. Do you offer free samples?
A5: Free samples are available .

Q6. Do you offer OEM service and can you product as our drawings?
A6: Yes, we can customize according to your drawing , or make drawing according to sample as your requirement.

Q7. Do you accept our design on boxes?
A7: Yes. We accept.

Q8. What's your delivery time?
A8: Generally, we will arrange shipment within 7-30 days after receiving the deposit and according to your purchasing quantities .

Q9. How do you control the quality?
A9: We will arrange sample confirmation before production if you need . During the production, we have professional QC staffs control the quality and manufacture in accordance to your confirmed samples. Welcome your visit to factory.
