Consealed drop down seal GF-B17

Consealed drop down seal, four-bar linkage mechanism, suitable for doors with slots in the door leaf. During installation, a 30mm*15mm through slot is required to be processed at the bottom of the door, and the product is placed in it, and the cover plates and seals at both ends are fixed with screws. The use of this product does not affect the overall style of the door.


Product Detail

Product Tags

Product Description

GF-B17
Consealed drop down seal, four-bar linkage mechanism, suitable for doors with slots in the door leaf. During installation, a 30mm*15mm through slot is required to be processed at the bottom of the door, and the product is placed in it, and the cover plates and seals at both ends are fixed with screws. The use of this product does not affect the overall style of the door.
Product Advantage
✓Super silent concept, specially for silent door.
✓The humanized design plunger, no matter how short it is exposed, easy to pull out and adjust.
✓The better mute performance; the lifting mechanism won't make a sound while using.
✓Cladding type lifting mechanism, better soundproof and sealing performance. D type sealing strip without wings can also be selected to cleanroom, operating room and other environmental requirements.
✓Internal four-bar linkage mechanism, flexible movement, stable structure, stronger anti - wind pressure.
✓Diversified installation, brackets installation, also can extracted the lifting mechanism to install on the top of door bottom.
✓Internal case can be draw out as a whole, convenient to install and maintenance.
✓Optional anti-dispute button component, the main body can be installed in advance, but can not be used normally, after the end of the project or the elimination of the dispute, can be directly inserted into the button component, normal adjustment use. Simple and convenient.
Specifications
Length 280mm – 1500mm
Sealing Gap 3mm – 15mm
Finish Anodized Silver
Fixing With stainless steel bracket. bracket.With pre-mounted screws under the seal, and the standard screws are equipped with hanging plate.
Plunger Optional Nylon plunger, wedge plunger
Seal Silicon rubber seal, gray colour

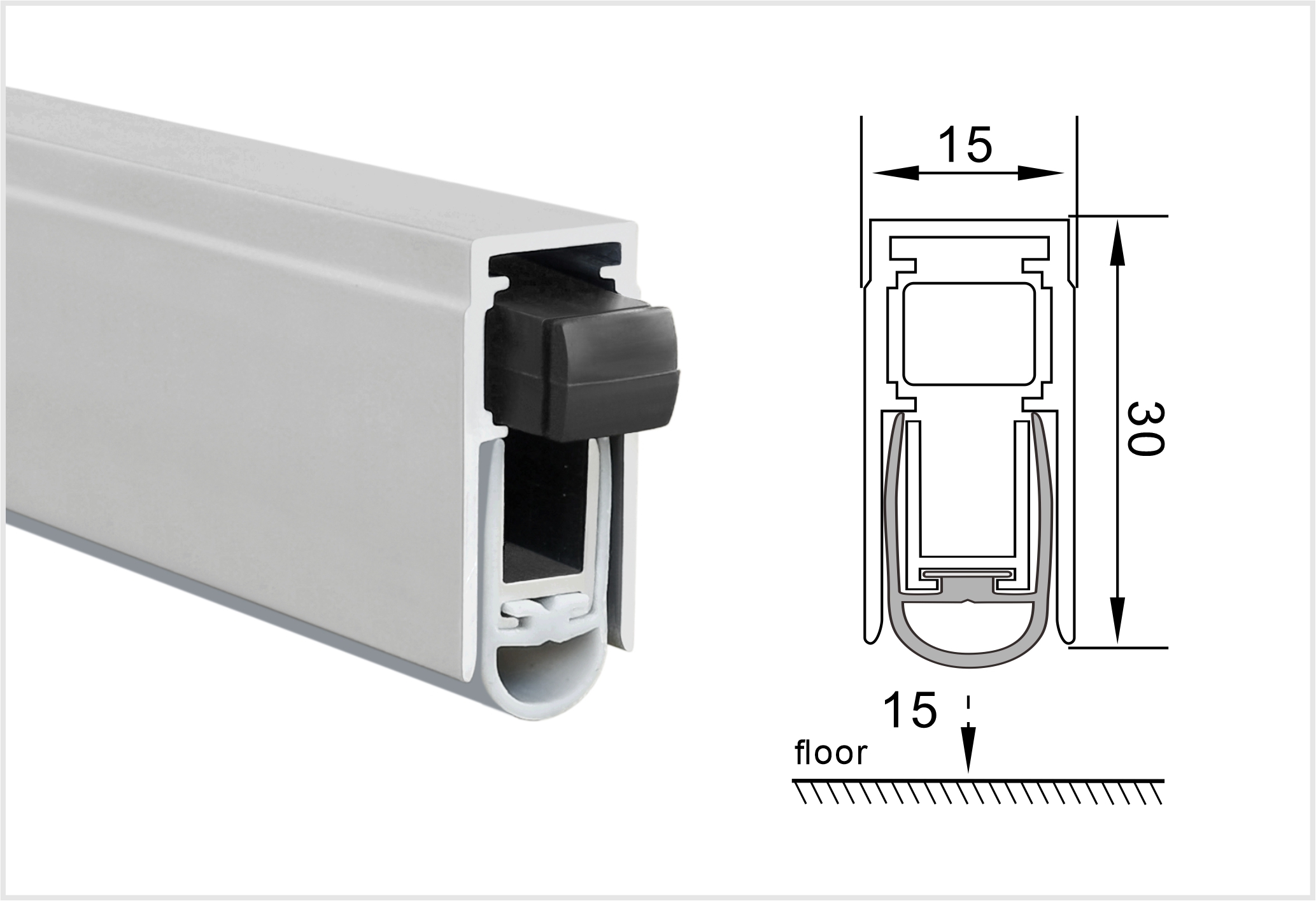

B17--+

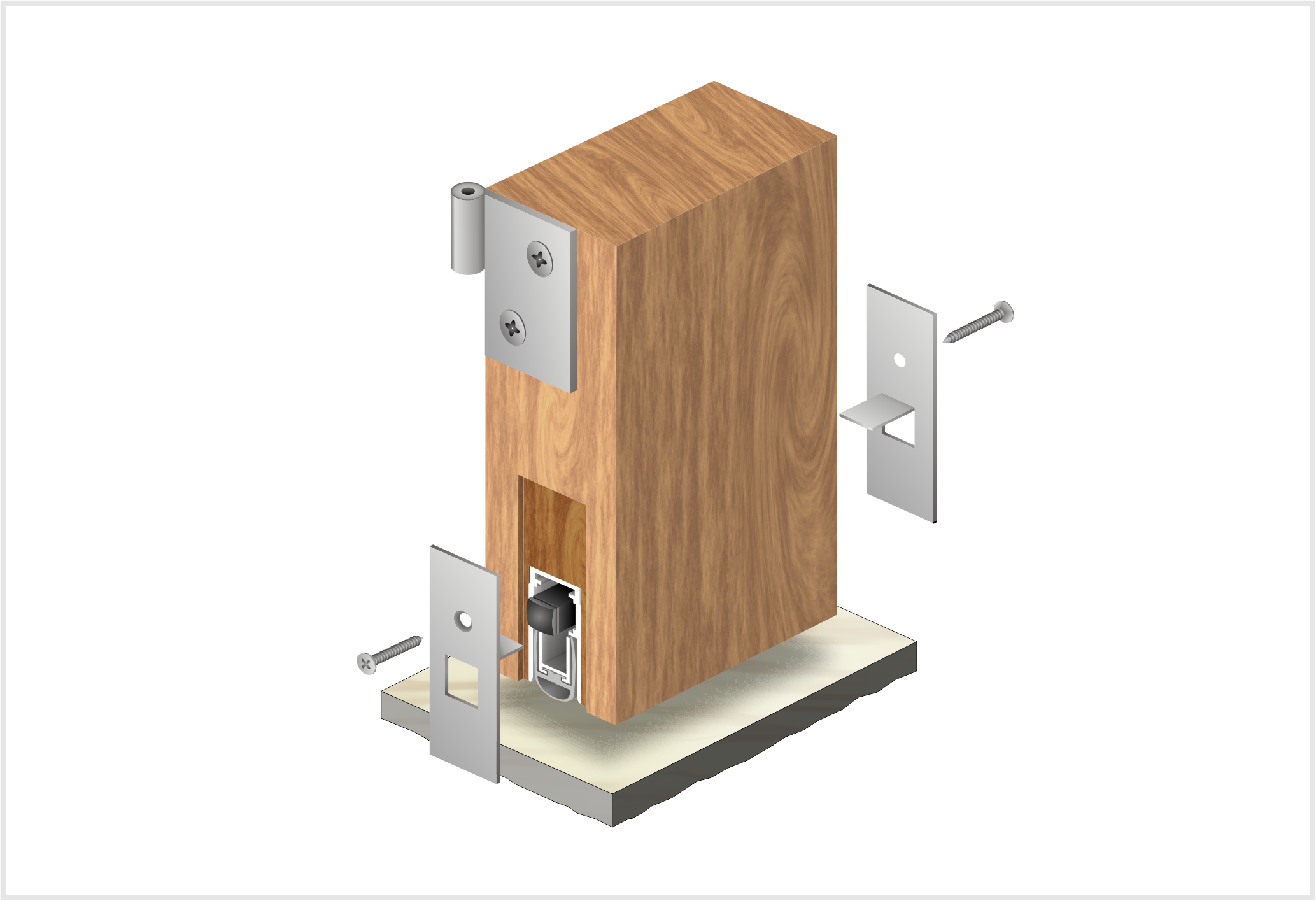

B17--

Packaging method

Packaging method

FAQ

Q1: Where can the door seal be used?
A1: The drop down door seal is suitable for residential, commercial, and industrial doors.

Q2: When should I consider replacing the door seal?
A2: With a tested operational life of up to 100,000 cycles, replacement is only necessary when the seal shows signs of wear or damage, or when its effectiveness diminishes over time.

Q3: How does using this seal benefit my property or business?
A3: By installing the door seal, you can reduce drafts, noise, and dust infiltration, improving energy efficiency and comfort within your space while minimizing maintenance needs.

Q4. Are you a manufacturer or trading company?
A4:We are a professional door and windows seal manufacturer with more than 23 years 'experience for domestic and International market.

Q5. Do you offer free samples?
A5: Free samples are available .

Q6. Do you offer OEM service and can you product as our drawings?
A6: Yes, we can customize according to your drawing , or make drawing according to sample as your requirement.

Q7. Do you accept our design on boxes?
A7: Yes. We accept.

Q8. What's your delivery time?
A8: Generally, we will arrange shipment within 7-30 days after receiving the deposit and according to your purchasing quantities .

Q9. How do you control the quality?
A9: We will arrange sample confirmation before production if you need . During the production, we have professional QC staffs control the quality and manufacture in accordance to your confirmed samples. Welcome your visit to factory.
